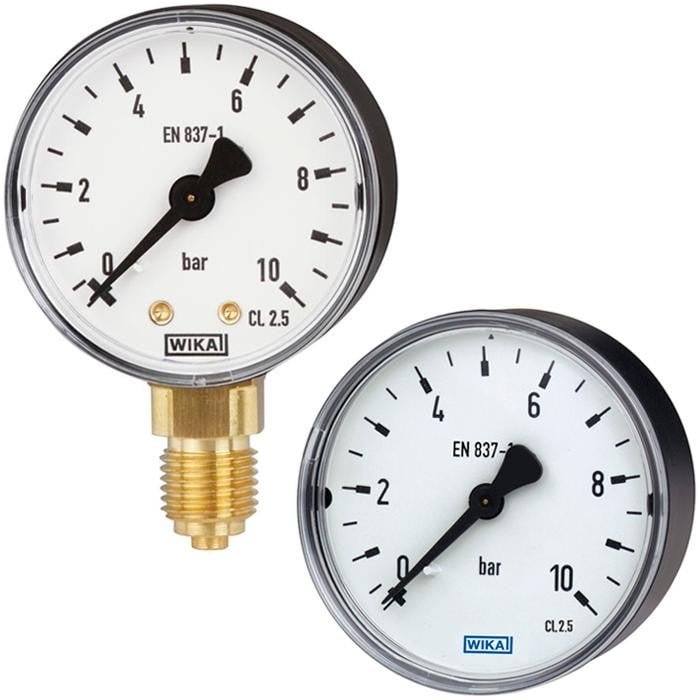

Models 111.10, 111.12

Standard version

- For gaseous and liquid media that are not highly viscous or crystallising and will not attack copper alloy parts
- Pneumatics
- Heating and air-conditioning technology
- Medical engineering
- Reliable and cost-effective
- Design per EN 837-1 or ASME B40.100
- 0 ... 400 bar [0 ... 6,000 psi]
- Ø 40 mm [1 ½"]
- Ø 50 mm [2"]
- Ø 63 mm [2 ½"]
- Ø 80 mm [3"]
- Ø 100 mm [4"]
- Ø 160 mm [6"] (only for model 111.10 with steel case)
- Lower mount (radial)
- Centre back mount

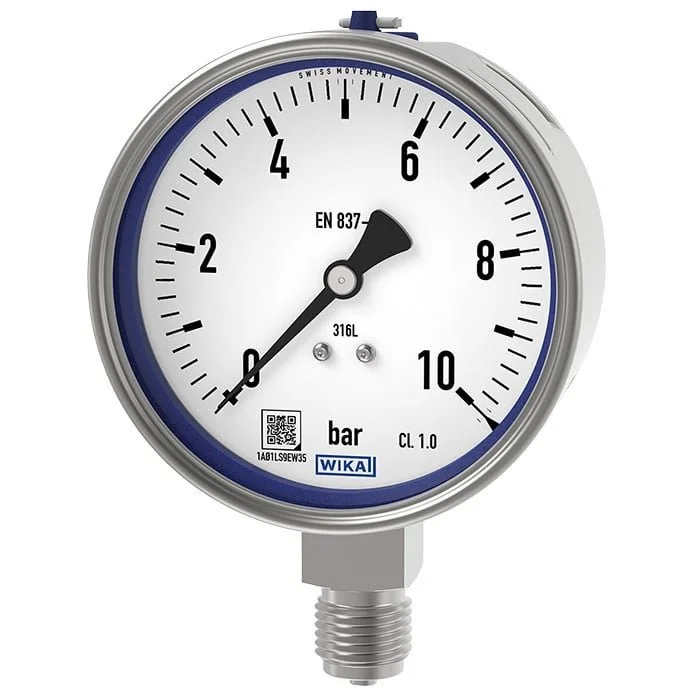

Models 232.50, 233.50, NS 63 (2 ½"), 100 (4") , 160 (6")

For the process industry, standard version, NS 63 [2 ½"], 100 [4"] and 160 [6"]

- Applications
  - For gaseous and liquid aggressive media that are not highly viscous or crystallising, also in aggressive environments
  - Chemical and petrochemical industries, oil and gas industry, power engineering and also water and wastewater technology
  - Machine building and general plant construction
- Special Features
  - Excellent load cycle stability and shock resistance
  - With case filling (model 233.50) for applications with high dynamic pressure loads and vibrations
  - Completely from stainless steel
- Scale ranges from 0 … 0.6 to 0 … 1,600 bar
  or
- 0 ... 10 to 0 ... 20,000 psi
- Ø 63 mm [2 ½"]
- Ø 100 mm [4"]
- Ø 160 mm [6"]
- Lower mount (radial)
- Lower back mount
- Centre back mount (only for NS 63 [2 ½"])

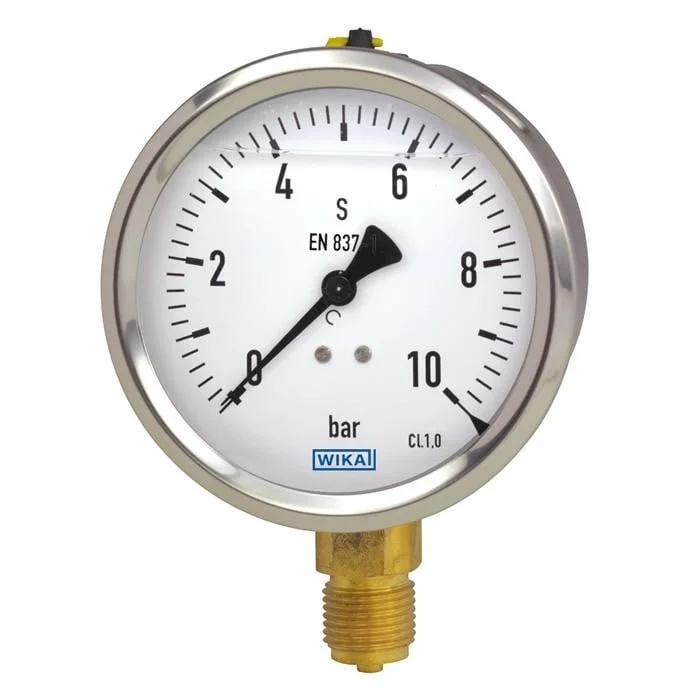

- For measuring locations with high dynamic pressure loads and vibrations
- For gaseous and liquid media that are not highly viscous or crystallising and will not attack copper alloy parts
- Hydraulics
- Compressors, shipbuilding
- Very good vibration and shock resistance
- Especially robust design
- Type approval for the shipbuilding industry
- Scale ranges to 0 ... 1,000 bar
or
- 0 ... 15,000 psi
- Ø 50 mm [2"]
- Ø 63 mm [2 ½"]
- Ø 100 mm [4"]
- Lower mount (radial)
- Centre back mount (only for NS 50 [2"] and NS 63 [2 ½"])
- Lower back mount (only for NS 100 [4"])

Stainless steel case, case filling, NS 50 [2"], 63 [2 ½"] and 100 [4"]

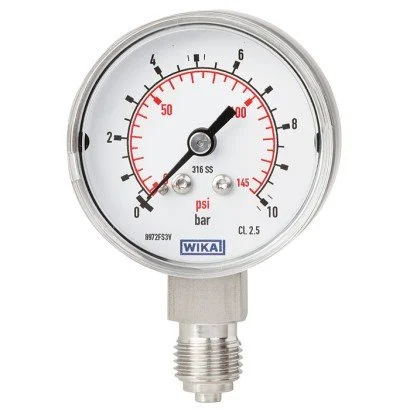

Compact version,

NS 40 [1 ½"], 50 [2"] and 63 [2 ½"]

- For gaseous and liquid aggressive media that are not highly viscous or crystallising, also in aggressive environments
- Machine building and general plant construction
- Indication of failure alarm on gas cylinders
- CDA (Clean Dry Air) applications
- Case and wetted parts from stainless stee
- Version per EN 837-1 or ASME B40.100
- Cost-effective and reliable
- Scale ranges from 0 ... 1 to 0 … 1,000 bar
  or
- 0 ... 15 to 0 ... 15,000 psi
- Ø 40 mm [1 ½"]
- Ø 50 mm [2"]
- Ø 63 mm [2 ½"]
1. Lower mount (radial)
■ Safety level “S1” per EN 837-1: With blow-out device at case circumference, 6 o”clock
2. Centre back mount
■ Safety level “S0” per EN 837-1
■ Safety level “S1
