QUICK COUPLER

2-WAY, 3-WAY, 4-WAY
A metal quick-connect fitting with a hose barb, hex nut, and knurled locking sleeve.

  • Part No. Size

    17SHA 1/4"HOSE

    20SHA 5/16"HOSE

    30SHA 3/8"HOSE

    40SHA 1/2"HOSE


    .

  • 1. Pneumatic tools

    2. Air piping

    3. Air pressure equipment

  • Material : Stainless/Steel

    Thread : PT

    Working Pressure : 218PSI (15Bar/1.5MPa)

    Maximum Pressure : 290PSI(20Bar/2MPa)

    Temperature Range: -20℃ ~ +80℃

     Size：

    • 1/4" (20Type)

    • 3/8" (30Type)

    • 1/2" (40Type)

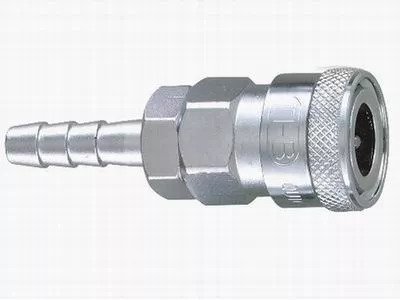

JAPANESE STYLE C TYPE REGULAR TYPE

Model : 20SHA / 30SHA / 40SHA

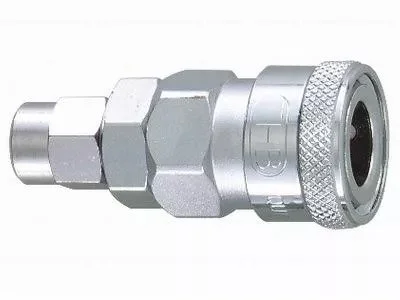

JAPANESE STYLE C TYPE - REGULAR TYPE - for Hose usage

Model : 20SPA / 30SPA / 40SPA

Metal hydraulic or pneumatic fitting with a red threaded end.

  • Part No. Size

    20SPA 5x8mm hose

    30SPA 6.5x10mm hose

    40SPA 8x12mm hose

    45SPA 10x14mm hose

    50SPA 11x16mm hose


    .

  • 1. Pneumatic tools

    2. Air piping

    3. Air pressure equipment

  • Material : Stainless/Steel

    Thread : PT

    Working Pressure : 218PSI (15Bar/1.5MPa)

    Maximum Pressure : 290PSI(20Bar/2MPa)

     Temperature Range: -20℃ ~ +80℃

     Size：

    • 1/4" (20Type)

    • 3/8" (30Type)

    • 1/2" (40Type)

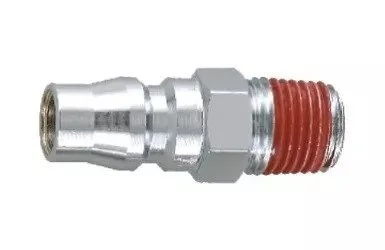

JAPANESE STYLE C TYPE - REGULAR TYPE PLUG / NIPPLE - Male thread

Model : 20PMA / 30PMA / 40PMA

Close-up of a metal quick-connect fitting featuring a knurled ring for secure attachment.

  • Part No. Size

    10PMA 1/8"PT

    20PMA 1/4"PT

    30PMA 3/8"PT

    40PMA 1/2"PT


    .

  • 1. Pneumatic tools

    2. Air piping

    3. Air pressure equipment

  • Material : Steel

    Thread : PT

    Working Pressure : 218PSI (15Bar/1.5MPa)

    Maximum Pressure : 290PSI(20Bar/2MPa)

     Temperature Range: -20℃ ~ +80℃

     Size：

    • 1/4" (20Type)

    • 3/8" (30Type)

    • 1/2" (40Type)

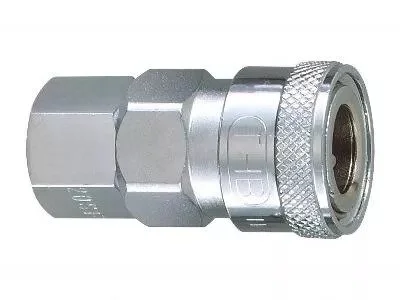

JAPANESE STYLE C TYPE REGULAR TYPE - Male thread

Model : 20SFA / 30SFA / 40SFA

  • Part No. Size

    20SFA 1/4"PT

    30SFA 3/8"PT

    40SFA 1/2"PT

  • APPLICATION:

    1. Pneumatic tools

    2. Air piping

    3. Air pressure equipment

  • Material : Stainless/ Steel

    Thread : PT

    Working Pressure : 218PSI (15Bar/1.5MPa)

    Maximum Pressure : 290PSI(20Bar/2MPa)

    Temperature Range: -20℃ ~ +80℃

     Size：

    • 1/4" (20Type)

    • 3/8" (30Type)

    • 1/2" (40Type)

Metal hose fitting with a barbed end and threaded connector

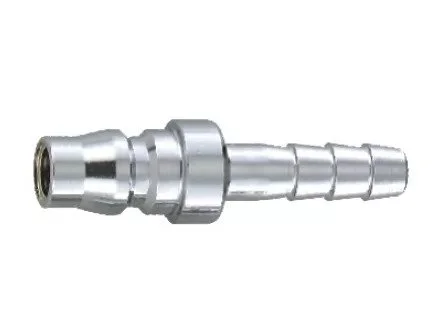

JAPANESE STYLE C TYPE - REGULAR TYPE PLUG / NIPPLE - Hose Barb end

Model : 20PHA / 30PHA / 40PHA

  • Part No. Size

    17PHA 1/4"HOSE

    20PHA 5/16"HOSE

    30PHA 3/8"HOSE

    40PHA 1/2"HOSE


    .

  • 1. Pneumatic tools

    2. Air piping

    3. Air pressure equipment

  • Material : Steel

    Thread : PT

    Working Pressure : 218PSI (15Bar/1.5MPa)

    Maximum Pressure : 290PSI(20Bar/2MPa)

     Temperature Range: -20℃ ~ +80℃

     Size：

    • 1/4" (20Type)

    • 3/8" (30Type)

    • 1/2" (40Type)

Metal quick-connect fitting or connector with threaded end, used in plumbing or pneumatic systems.

JAPANESE STYLEC TYPE - REGULAR TYPE PLUG / NIPPLE - for PU usage

Model : 20PPA / 30PPA / 40PPA

  • Part No. Size

    20PPA 5x8mm hose

    30PPA 6.5x10mm hose

    40PPA 8x12mm hose

    45PPA 10x14mm hose

    50PPA 11x16mm hose


    .

  • 1. Pneumatic tools

    2. Air piping

    3. Air pressure equipment

  • Material : Steel

    Thread : PT

    Working Pressure : 218PSI (15Bar/1.5MPa)

    Maximum Pressure : 290PSI(20Bar/2MPa)

     Temperature Range: -20℃ ~ +80℃

     Size：

    • 1/4" (20Type)

    • 3/8" (30Type)

    • 1/2" (40Type)

A metallic quick-connect fitting with red threaded end for connecting hoses or equipment.

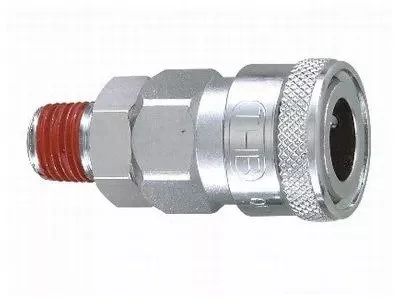

JAPANESE STYLE C TYPE REGULAR TYPE - Male thread

Model : 20SMA / 30SMA / 40SMA

  • Part No. Size

    20SMA 1/4"PT

    30SMA 3/8"PT

    40SMA 1/2"PT

  • 1. Pneumatic tools

    2. Air piping

    3. Air pressure equipment

  • Material : Stainless/Steel

    Thread : PT

    Working Pressure : 218PSI (15Bar/1.5MPa)

    Maximum Pressure : 290PSI(20Bar/2MPa)

    Temperature Range: -20℃ ~ +80℃

     Size：

    • 1/4" (20Type)

    • 3/8" (30Type)

    • 1/2" (40Type)

Metal pneumatic fitting with a hexagonal body and threaded end

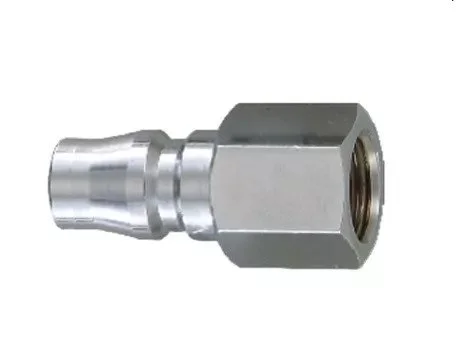

JAPANESE STYLE C TYPE - REGULAR TYPE PLUG / NIPPLE - Female thread

Model : 20PFA / 30PFA / 40PFA

  • Part No. Size

    10PFA 1/8"PT

    20PFA 1/4"PT

    30PFA 3/8"PT

    40PFA 1/2"PT



    .

  • 1. Pneumatic tools

    2. Air piping

    3. Air pressure equipment

  • Material : Steel

    Thread : PT

    Working Pressure : 218PSI (15Bar/1.5MPa)

    Maximum Pressure : 290PSI (20Bar/2MPa)

    Temperature Range: -20℃ ~ +80℃

    Size:

    • 1/4" (20Type)

    • 3/8" (30Type)

    • 1/2" (40Type)

JAPANESE TYPE C TYPE ONE TOUCH COUPLER

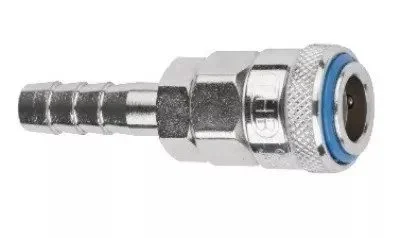

  • JAPANESE STYLE C TYPE – ONE TOUCH COUPLER / Hose Barb end

    Model : 20SHT / 30SHT / 40SHT

    Part No. Size

    20SHT 5/16"HOSE

    30SHT 3/8"HOSE

    40SHT 1/2"HOSE


  • JAPANESE STYLE C TYPE – ONE TOUCH COUPLER / Hose Barb end

    Model : 20SFT / 30SFT / 40SFT

    Part No. Size

    20SFT 1/4"PT

    30SFT 3/8"PT

    40SFT 1/2"PT

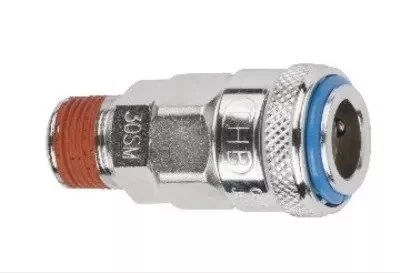

  • JAPANESE C TYPE STYLE – ONE TOUCH COUPLER / Male thread

    Model : 20SMT / 30SMT / 40SMT

    Part No. Size

    20SMT 1/4"PT

    30SMT 3/8"PT

    40SMT 1/2"PT
